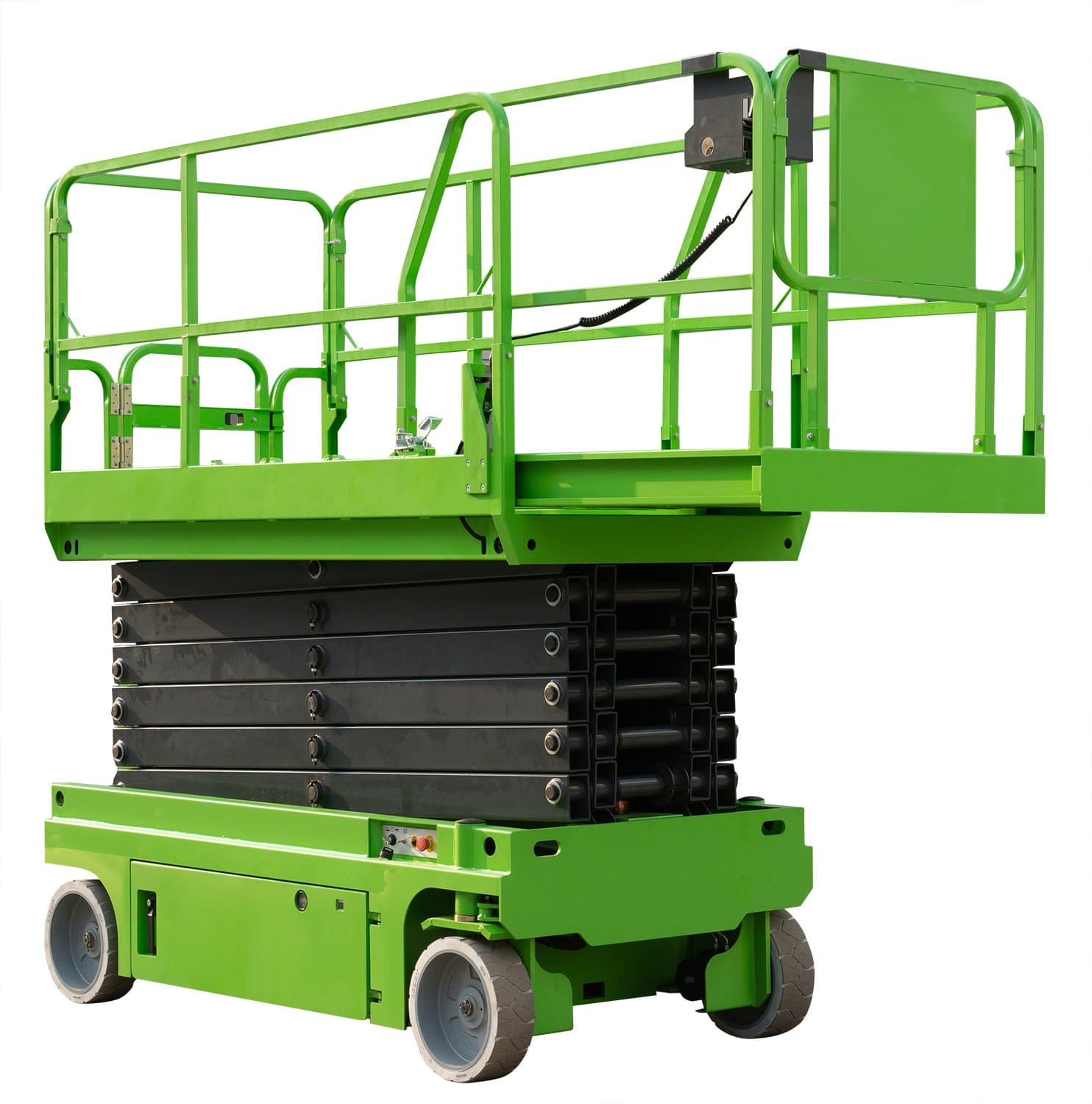

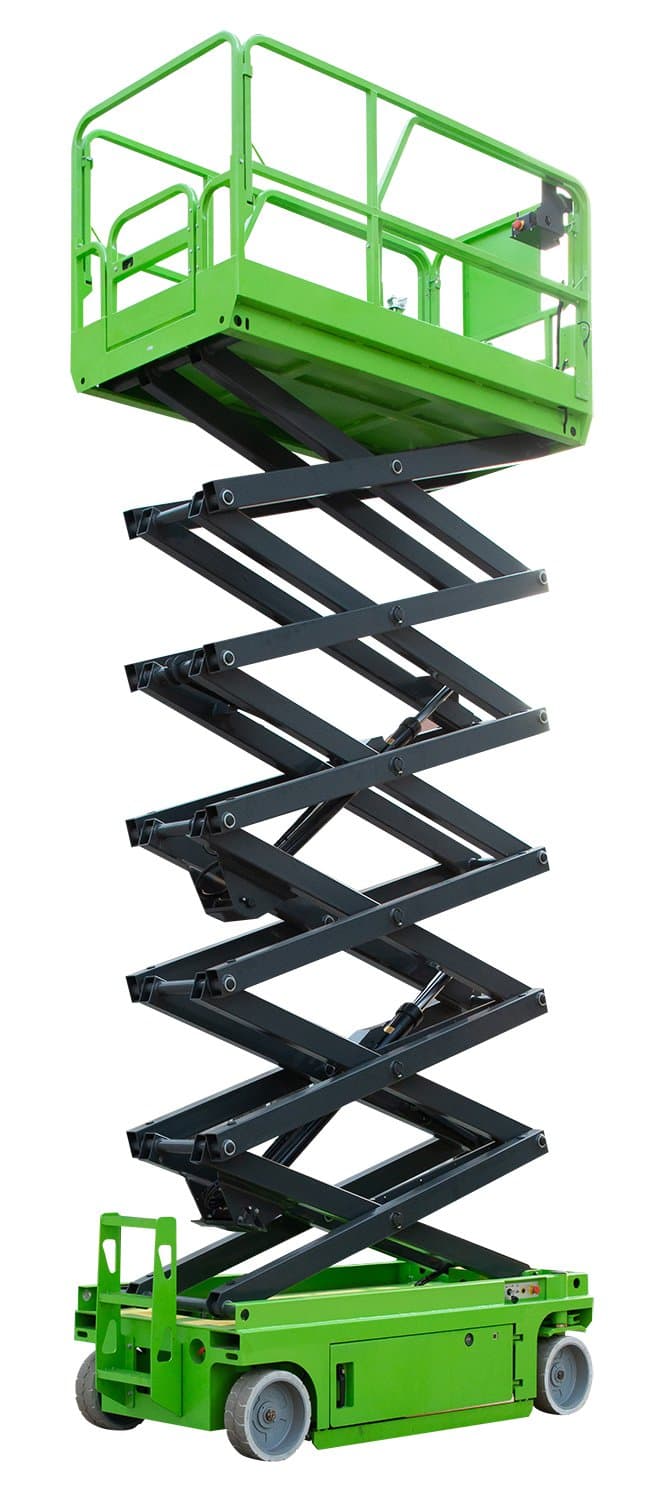

Self-Propelled Scissor Lift.
Key features
- Self-Propelled: Easy to move without external help.
- Adjustable Height: Reaches a variety of work areas.
- Compact & Maneuverable: Ideal for tight spaces.
Specification
Find the right model
Select a model for a focused view, or compare the complete range.
Select model
Showing specifications for model MX580S
- Platform Capacity
- 230 kg
- Extension Capacity
- 113 kg
- Working Height max
- 7.80 m
- Platform Height max
- 5.80 m
- Overall Length
- 1.86 m
- Overall Width
- 0.76 m
- Overall Height (Rails Up)
- 2.18 m
- Overall Height (Rails Down)
- 1.84 m
- Platform Size (LXW)
- 1.67x0.74 m
- Platform Extension Size
- 0.9 m
- Ground Clearance (Stowed)
- 0.083 m
- Ground Clearance (Raised)
- 0.016 m
- Wheelbase
- 1.36m
- Turning Radius (Inside)
- 0
- Turning Radius (Outside)
- 1.64 m
- Lift/Drive Motor
- 24V/3.3 kw
- Travel Speed (Stowed)
- 3.5 km/h
- Travel Speed (Raised)
- 0.8 km/h
- Raise / Lower Time
- 3-5 m/min
- Power Source
- 4X6V/225 ah
- Charger
- 24V/30 A
- Gradeability
- 25%
- Maximum Working Slope
- 1.5°/3°
- Tire Size
- Φ305 x 100 mm
- Weight
- 1500 kg
